Orca 3D for Rhino (Design)

Buy Orca3D Design

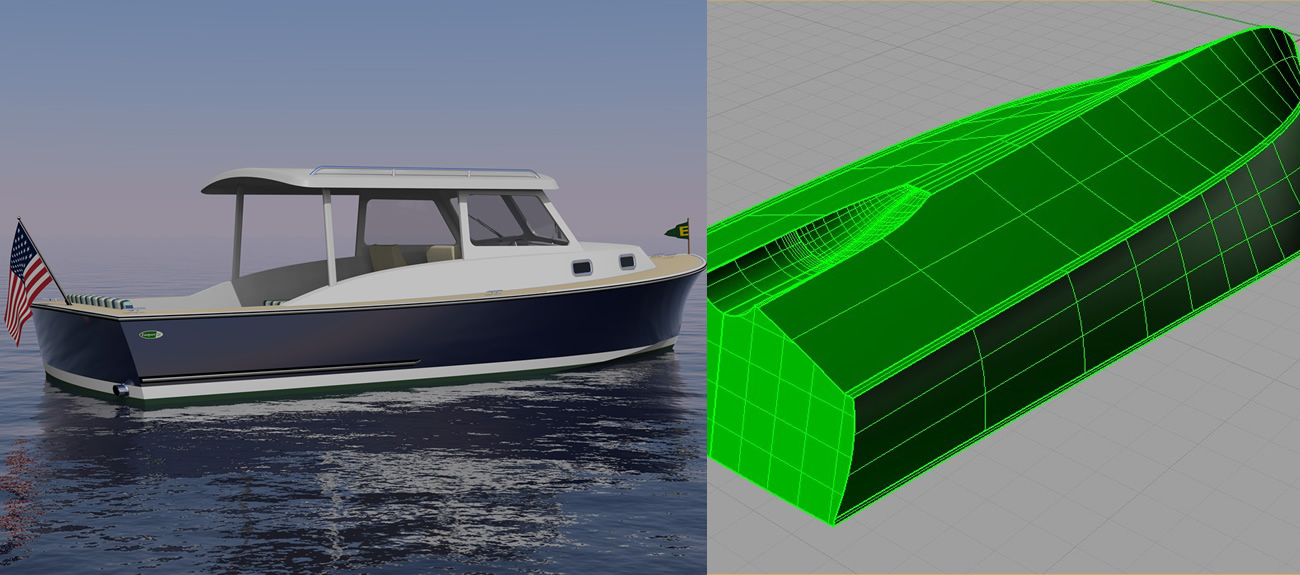

Includes the Hull Design & Fairing, and Basic Hydrostatics & Stability features. This is equivalent to the previous Level 1

Highlights of Orca3D Version 3

• Unlimited number of conditions (Fixed Load Cases) may be saved for Basic Hydrostatics (replacing the single Design condition).
• Floodable Length calculation.
• Multiple sets of Section definitions, to be used for hull design and fairing, hydrostatics, or lines drawings and offset tables.
• Grasshopper components for Hull Assistants, Basic Hydrostatics & Stability, Planing Hull Resistance, and Displacement Hull Resistance.
• Weight Reports may now be grouped by Material.
• Stock Material Library now has Export and Merge functions, and the user may specify the location of the Library xml file.
• Added flexibility in selection of surface(s) for Planing and Displacement Resistance prediction, as well as the Load Case to be used.
• Addition of van Oortmerssen resistance method.
• Improved analysis reporting throughout.
